2 Way Locking Style Plug

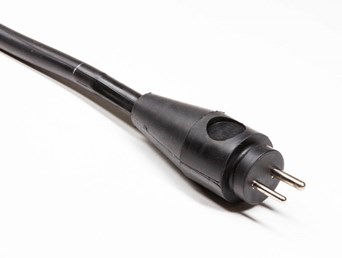

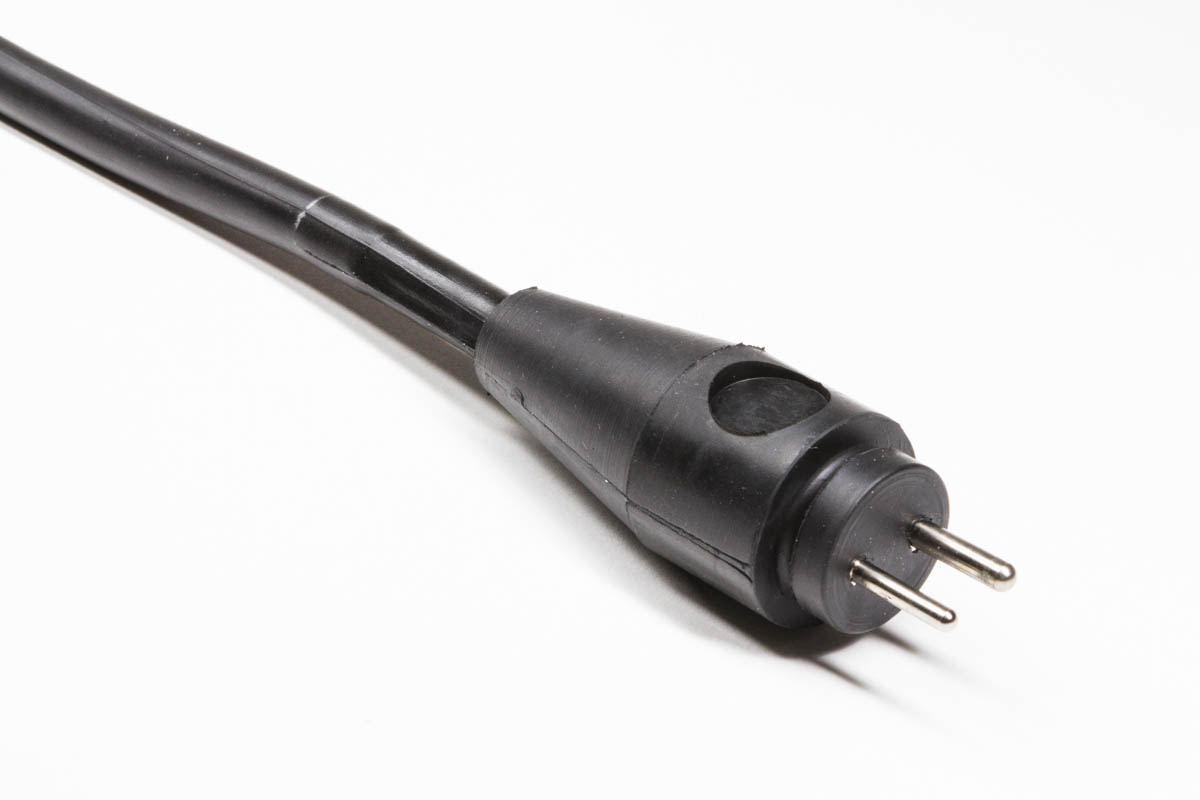

Image of 2 Way Locking Style Plug

CDG`s 2 Way Locking Style Plug lead can be supplied to the manufacturers of AGL luminaires or direct to contractors and airports for on-site installations and repairs.  The locking style range of plugs and sockets offers additional protection against the ingress of moisture due to the integral locking ring of the moulding.  The 2 Way Locking Style Plug can be combined with the 2 Way Locking Style Socket to form a prefabricated extension lead.

Enquire about this Product Print


  • Designed and manufactured utilising the principals of the FAA L-823, Class A specification, AC 150/5345-26


  • Factory moulded using synthetic or silicone rubber for their robust and flexible properties
  • Generally moulded to rubber/TPE sheathed cables, other options include silicone, nylon and PTFE
  • Can be manufactured using 2 core cables ranging in conductor size from 1.5mm to 6mm
  • Secondary connectors can be manufactured to any specified length
  • 100% visually inspected and continuity tested during the manufacturing process


  • 20 Amps - 600V between contacts - 1500V to ground


The 2 Way Locking Style plug connects with the following

  • 2 Way Locking Style Socket
