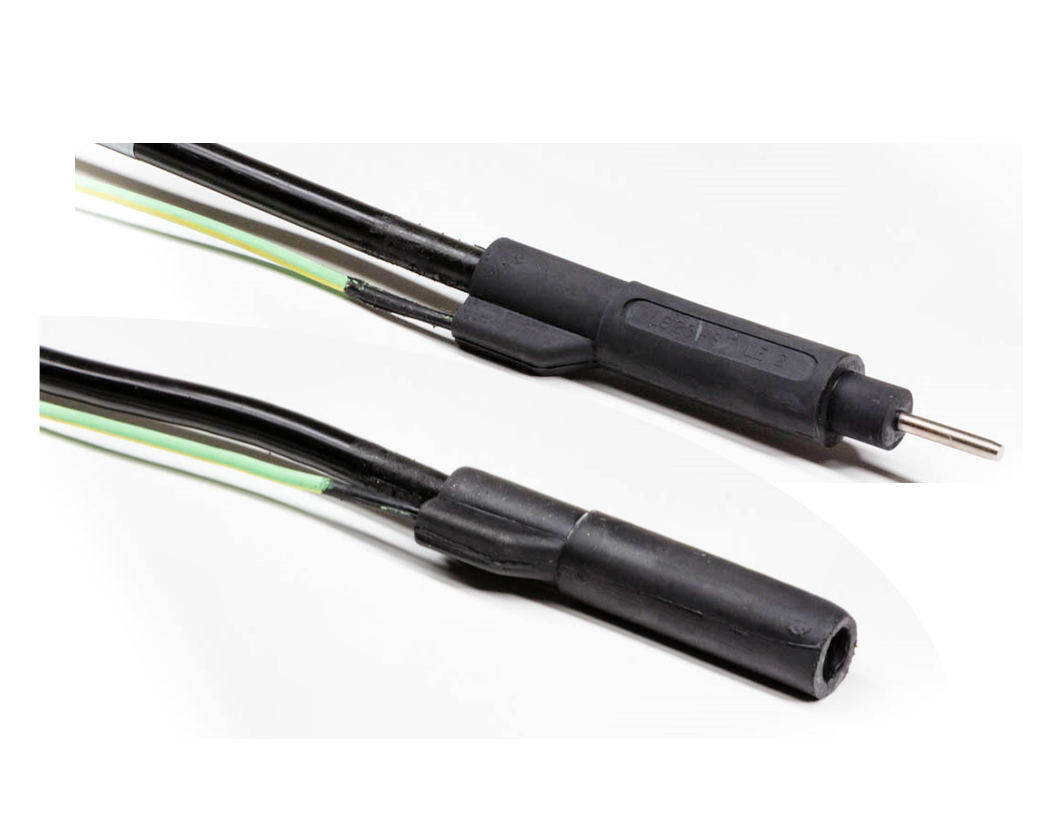

Primary Extension Leads

CDG`s Primary extension leads can be supplied direct to contractors and airports for on-site installations and repairs. Prefabricated extension leads have the benefit f 100% factory testing as well as the time saving during installation compared to primary connector kits.

Enquire about this Product Print

Specification

Manufactured in full compliance with FAA L-823, Class A specification, AC 150/5345-26

Design

Factory moulded using synthetic rubberfor their robust and flexible properties
Moulded to rubber/TPE or XLPE sheathed cables
Can be manufactured using 6mm / 8AWG screened or unscreened primary cable
When moulded to screened cable the lead comes complete with an integral earth lead
Primary extension leads can be manufactured to any specified length
100% visually inspected during manufacturing process
100% continuity and 15kV insulation resistance tested

Rating

25 Amps - 5000V to ground

Configuration

Style 2 plug to Style 9 socket
Style 2 plug to Style 2 plug
Style 9 socket to Style 9 socket
