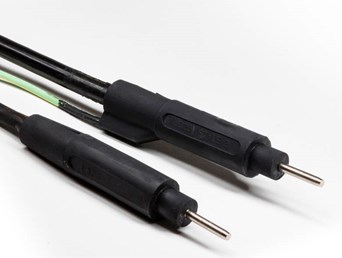

Style 2 Plug

CDG`s Style 2 plug lead can be supplied to the manufacturers of AGL transformers or direct to contractors and airports for on-site installations and repairs. The Style 2 plug can be combined with the Style 9 socket to form a prefabricated extension lead.

Enquire about this Product Print

Specification

Manufactured in full compliance with FAA L-823, Class A specification, AC 150/5345-26

Design

Factory moulded using synthetic rubberfor their robust and flexible properties
Moulded to rubber/TPE or XLPE sheathed cable
Can be manufactured using 6mm / 8AWG screened or unscreened primary cable
When moulded to screened cable the lead comes complete with an integral earth lead
Primary connectors can be manufactured to any specified length
100% visually inspected during manufacturing process
100% continuity and 15kV insulation resistance tested

Rating

25 Amps - 5000V to ground

Compatibility

Style 9 socket
Style 10 Primary Connector Kit
Primary Connector Resin Kit
