Track Circuit Leads

Custom Design Group track circuit leads deliver cost savings in signalling installation and maintenance projects.

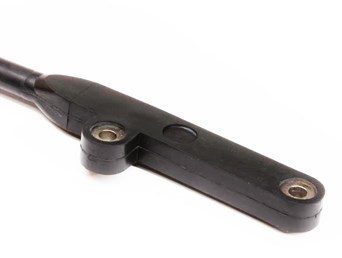

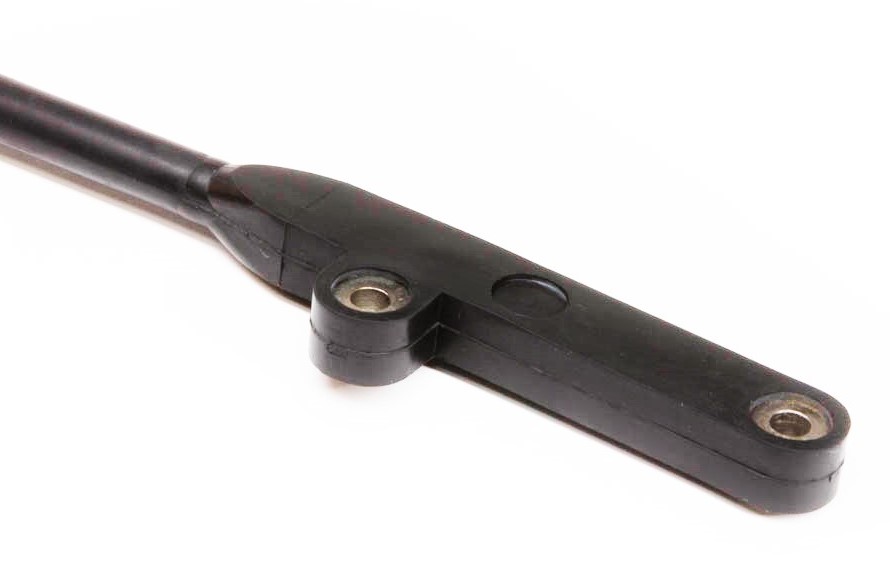

Single core cables supplied with a factory moulded termination at one or both ends. The terminations are moulded in neoprene and provide excellent vibration protection for the electrical connection. Track circuit leads have twin connections, providing fail safe long term reliability.

Custom Design Mouldings is a registered supplier on the RISQS Database

Enquire about this Product Print

Specifications

Track Circuit Cable Assemblies comply with the design and performance requirements of the Network Rail standard GK/RT 0301 (where applicable)

Design

Factory moulded using synthetic rubber for its robust and flexible properties
Generally moulded to rubber/TPE sheathed cables
Can be manufactured using single core 2.5mm C1 rail cable
Track Circuit leads can be manufactured to any specified length
100% visually inspected and continuity tested during the manufacturing process

Features

Low Maintenance
Design eliminates vibration
Fail-safe duplicate track connection
Factory made and tested for long term reliability
Stain relief design prevents cable failure
Fast installation in potentially dangerous areas
100% electrically tested
