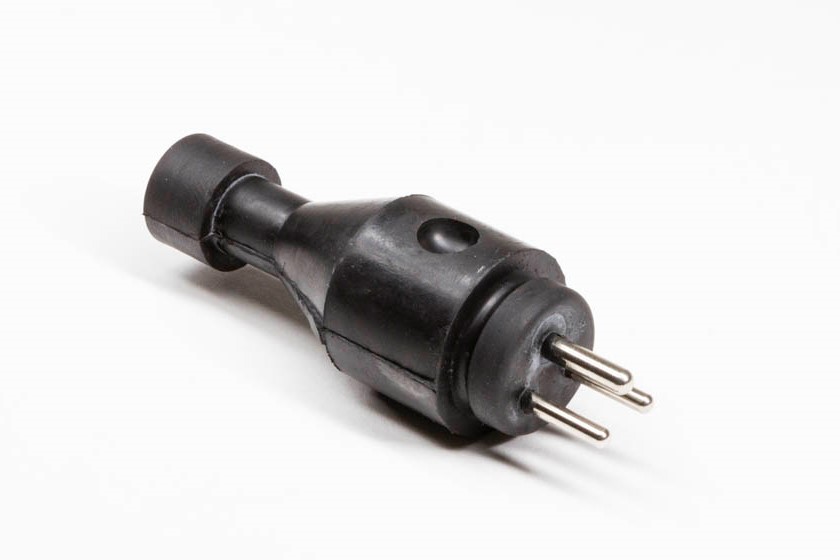

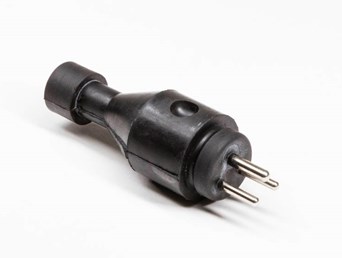

3 Way Locking Style Shorting / Blanking Plug

CDG`s Locking Style Shorting / Blanking Plugs can be supplied direct to contractors and airports for on-site installations. The Locking Style Shorting / Blanking Plug is used for shorting / blanking of secondary sockets when the light fitting is disconnected.

Enquire about this Product Print

Specification

Designed and manufactured utilising the principals of the FAA L-823, Class A specification, AC 150/5345-26

Design

Factory moulded using synthetic or silicone rubber for their robust and flexible properties
Shorting plugs are manufactured using a 2.5mm conductor
100% visually inspected and continuity tested during the manufacturing process

Rating

20 Amps - 600V between contacts - 1500V to ground

Compatibility

The 3 Way Locking Style Shorting / Blanking Plug plug connects with the following:

3 Way locking Style Socket
3 Way locking Style secondary connector kits
