5 Way Locking Style Plug & Socket

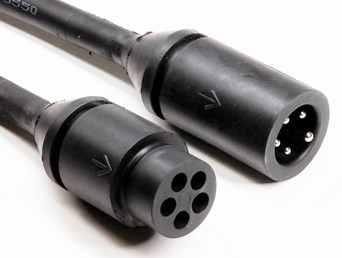

Image of 5 Way Locking Style Plug & Socket

CDG`s 5 Way Locking Style Plug & Socket offers additional protection against the ingress of moisture due to the integral locking ring of the moulding.  The 5 Way Locking Style Plug can be combined with the 5 Way Locking Style Socket to form a prefabricated extension lead.


Enquire about this Product Print


  • Designed and manufactured utilising the principals of the FAA L-823, Class A specification, AC 150/5345-26


  • Factory moulded using synthetic or silicone rubber for their robust and flexible properties
  • Generally moulded to rubber/TPE sheathed cables, other options include silicone, nylon and PTFE
  • Can be manufactured using 5 core cables ranging in conductor size from 1.5mm to 2.5mm
  • Secondary connectors can be manufactured to any specified length
  • 100% visually inspected and continuity tested during the manufacturing process


  • 20 Amps - 600V between contacts - 1500V to ground
